Twin Screw Plant For CPVC Pipe
Our Twin Screw Plants for CPVC Pipe production are engineered for efficient processing, consistent output, and excellent pipe quality. Designed for reliable performance and low power consumption, these extrusion systems ensure high productivity and long service life for a wide range of CPVC pipe manufacturing applications.
CPVC Pipe Extruder - Twin Screw Plant For CPVC Pipe
We manufacture and export a wide range of plastic processing machinery, including Plastic Extruders, Twin Screw Extruders, PVC Pipe Plants, Pipe Extruders, HDPE Pipe Plants, Recycling Machines, Plastic Reprocessing Plants, Co-Rotating Extruders, Drip Irrigation Systems, Compounding Extruders, Pipe Machinery, PVC Casing Capping Machinery, Plastic Profile Machinery, and LLDPE Pipe Plants.
Our machinery is designed for reliable performance, high productivity, and efficient processing across various plastic extrusion and manufacturing applications. We also provide customized extrusion solutions to meet diverse industrial requirements.
15+
Machine Categories
100%
Export Quality
24/7
Technical Support
Why Choose Our Twin Screw Extruder

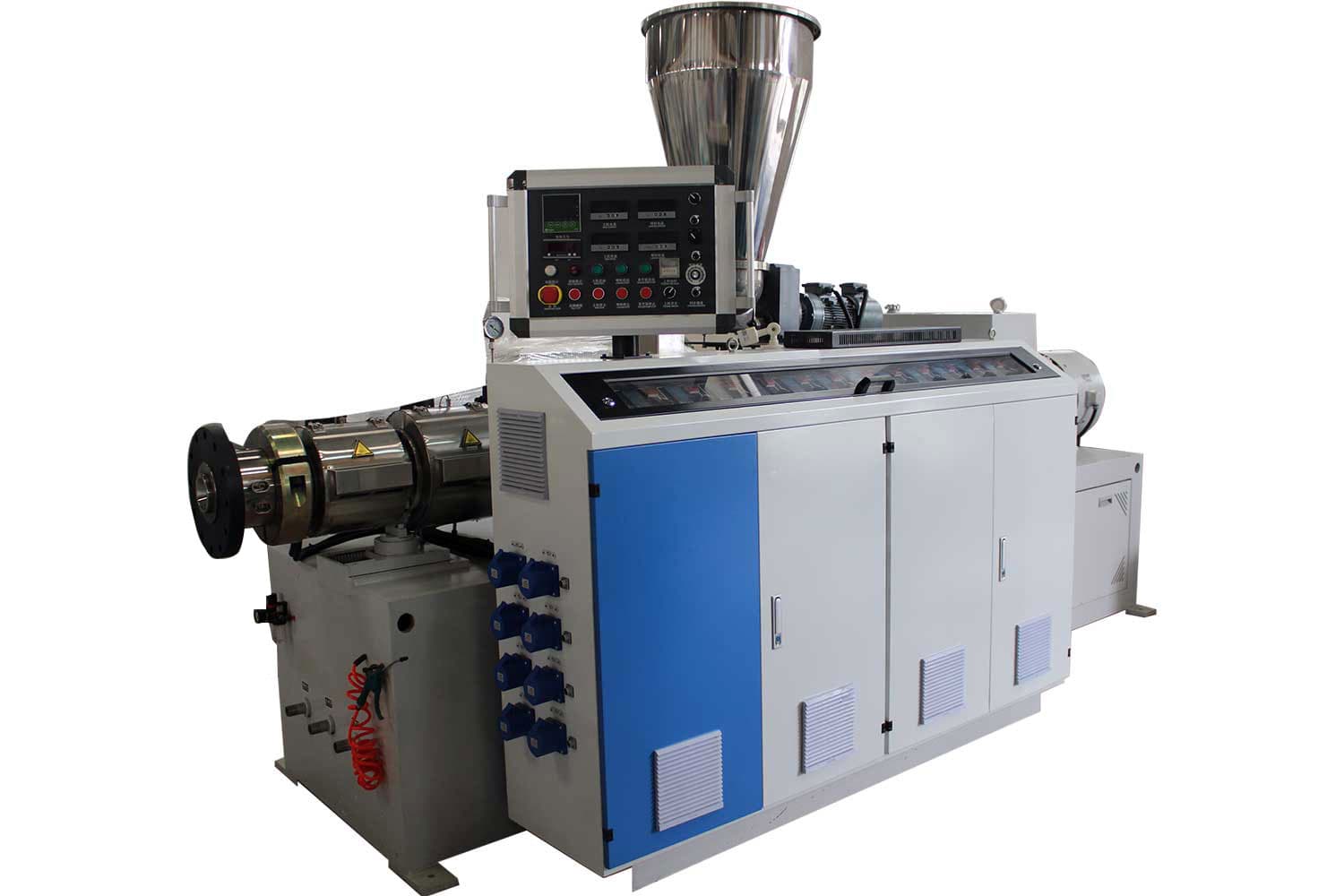

CPVC Conical Twin Screw Extruder
Counter-rotating conical twin screw extruder manufactured on CNC WMW German thread milling machines using simulation software. Designed for high calcium loading with compact gearbox, synchronized drives, high output, and low power consumption.
Die Head
Manufactured from high carbon content forged alloy steel for enhanced durability, longer service life, and reliable performance during CPVC pipe production.

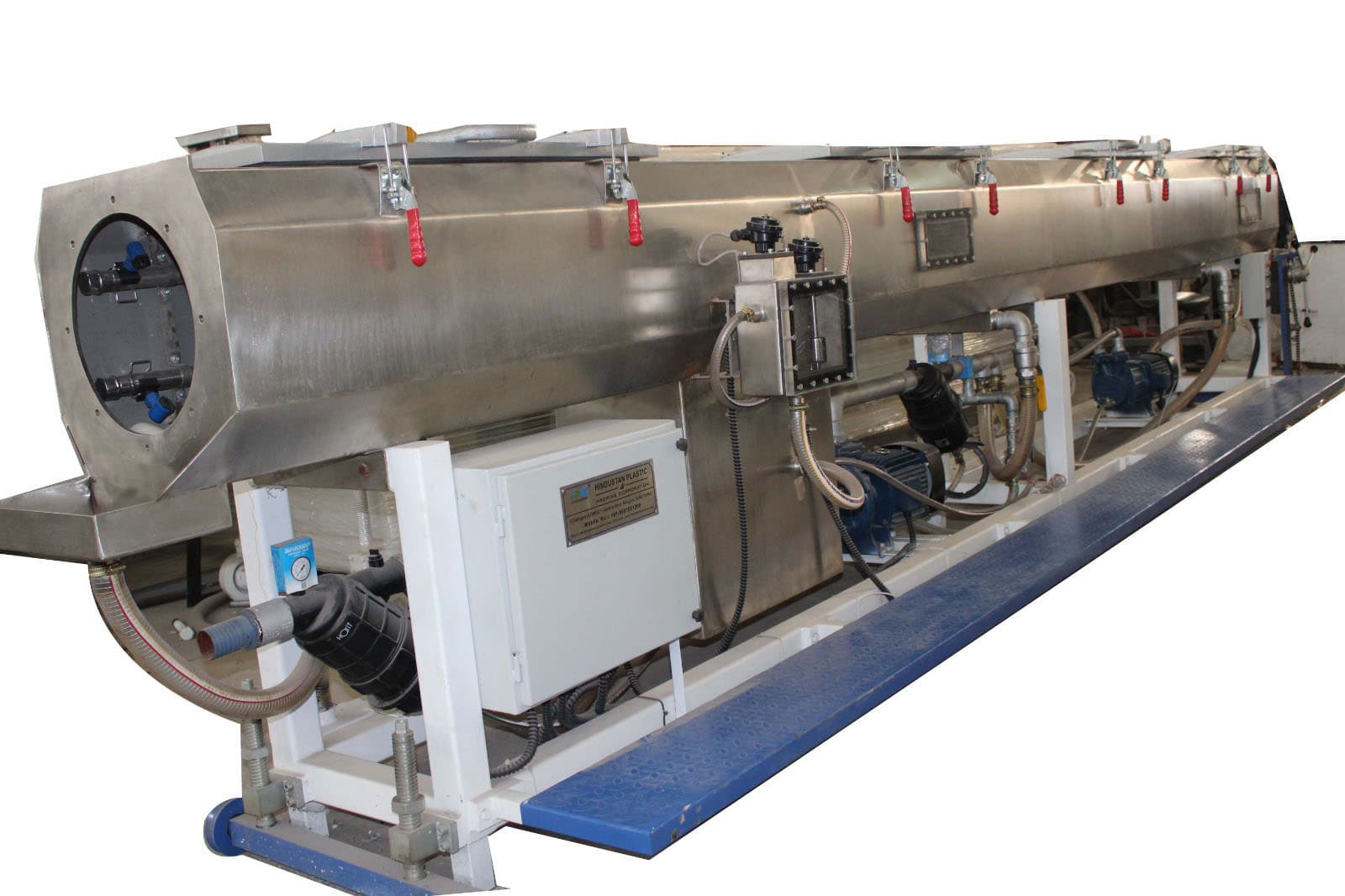

Spray Bath
Intensive pipe cooling system equipped with multiple self-cleaning spray nozzles, axial tank adjustment on slide rails, and an acrylic transparent cover for easy inspection.

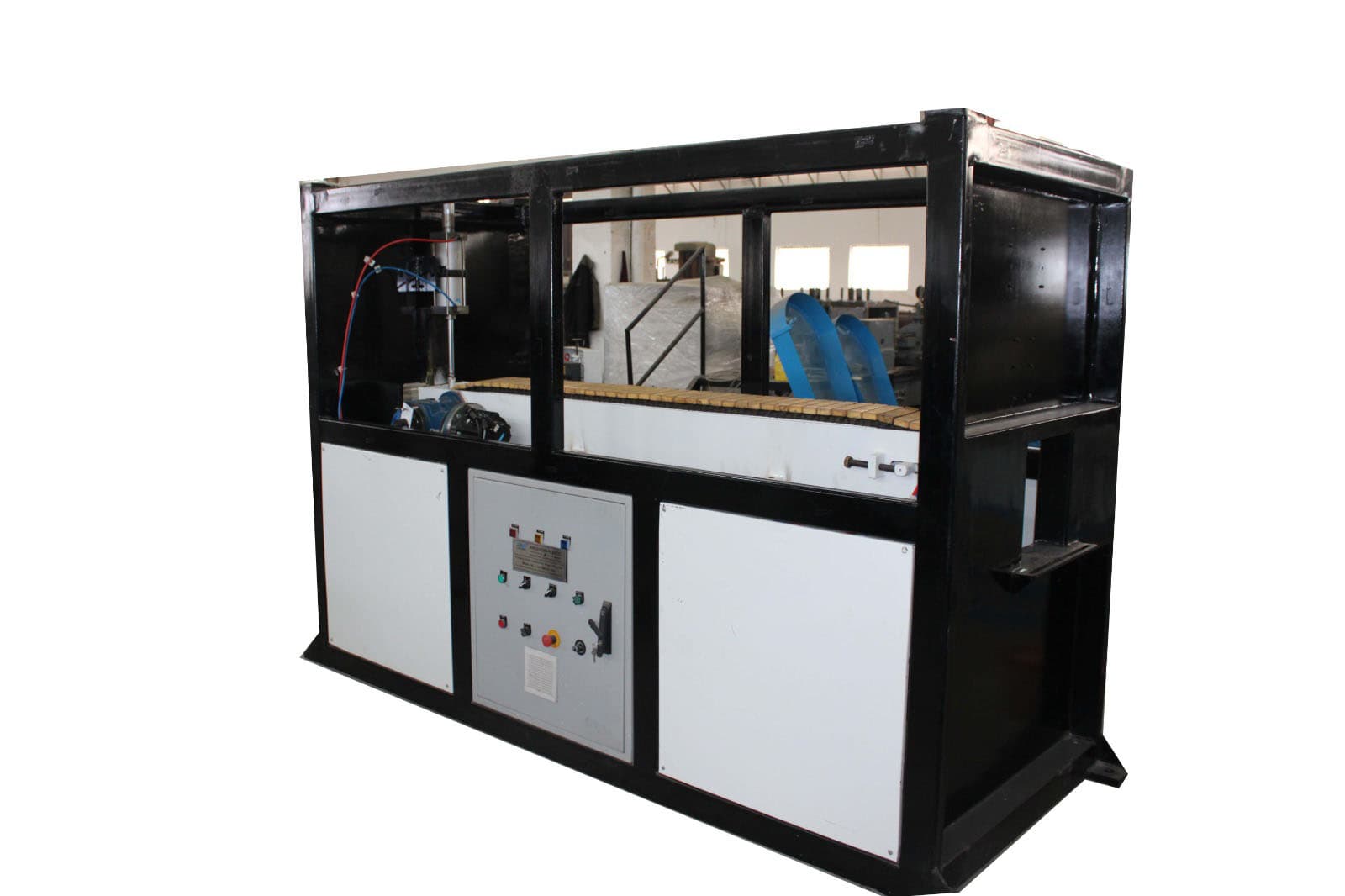

Pneumatic Haul Off
Twin and multi-track haul-off system suitable for pipe sizes from 20mm to 315mm. Synchronized with the extruder through AC frequency variable drive and equipped with pneumatic pressure adjustment.

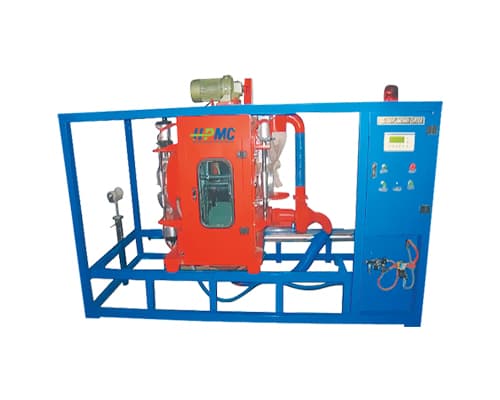

Planetary Cutting Saw
PLC-controlled planetary cutting system for pipe diameters up to 315mm. Includes UPVC chamfering rotary cutting, dust extraction system, and hard alloy saw blades for thick-wall pipes.

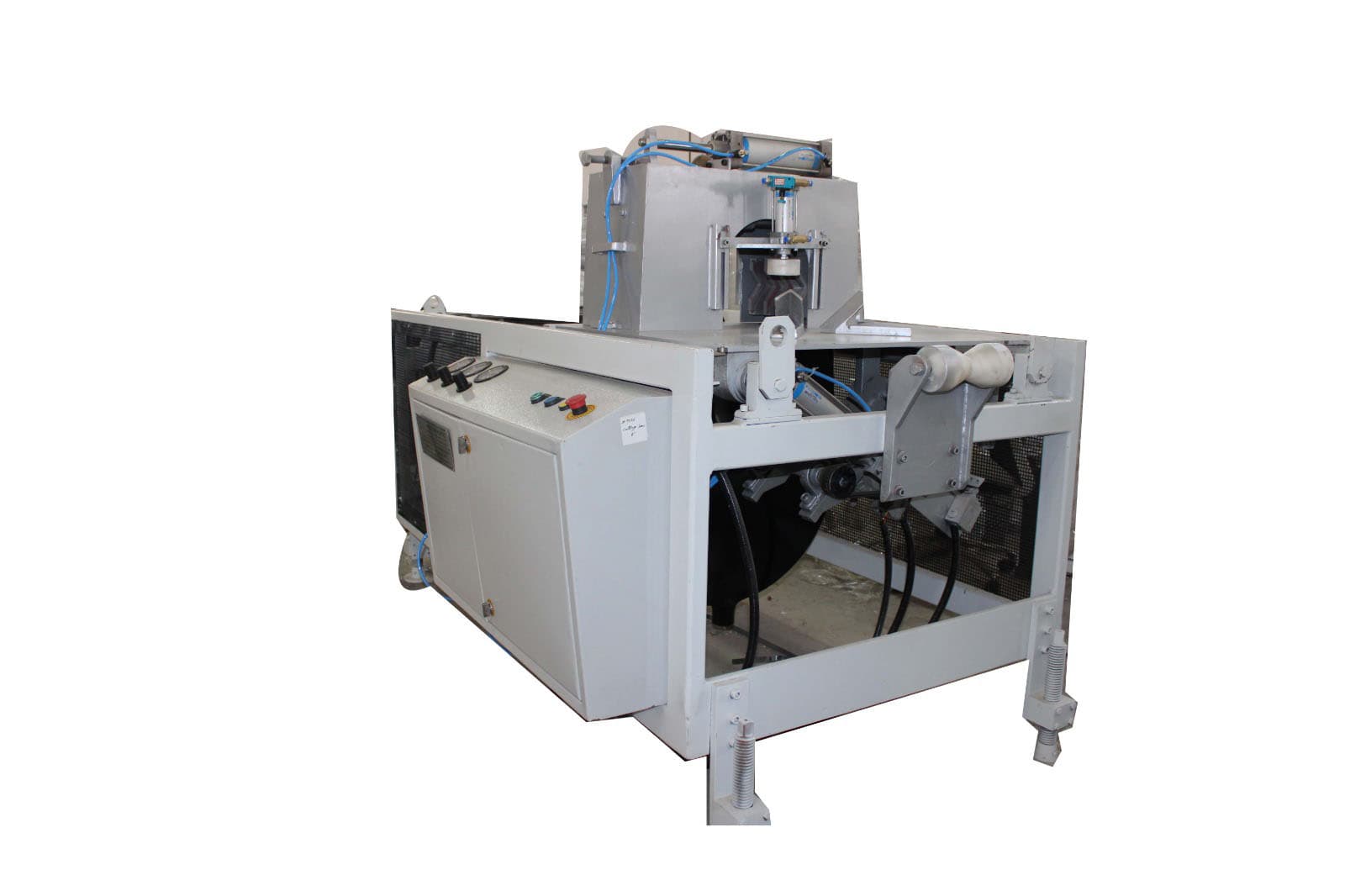

Automatic Cutting Unit
Automatic cutting unit for pipes up to 200mm diameter featuring a carborundum cutter, pneumatic cylinder movements, adjustable clamping force, and length sensing limit switch.
Tipping Chute
Automatic pipe stacking system operated using pneumatic cylinders and limit switches for smooth handling and efficient collection of finished pipes.
Technical Specifications
| MACHINE MODELS | HPMC 51/105 | HPMC 65/132 | HPMC 80/156 |
|---|---|---|---|
| Max Plasticizing Capacity (Kg/hr) | 180 | 275 | 400 |
| Max Output (Kg/hr) | 150 | 250 | 350 |
| Main Drive KW | 18.5 | 37 | 55 |
| Heating Barrel (KW) | 15 | 24 | 35 |
| Heating Die (KW) | 3 | 3 | 4 |
| Screw Speed Variation (RPM) | 1-37 | 1-37 | 1-37 |
